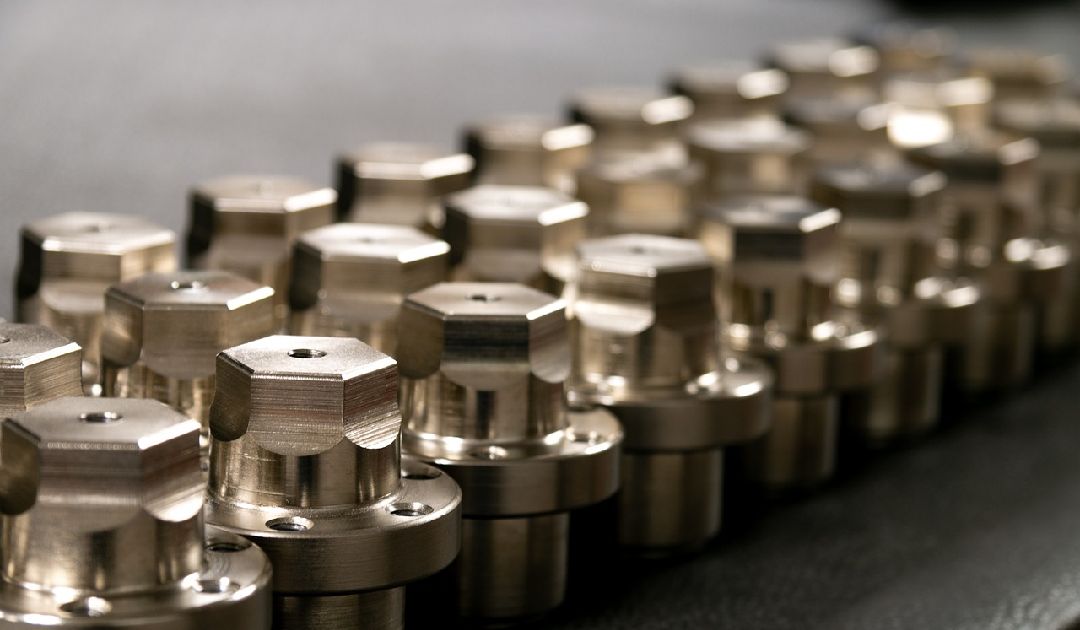

What is Metal Parts CNC Machining?
Metal parts CNC (Computer Numerical Control) machining is a highly precise manufacturing process where computers control machine tools to cut, shape, and finish metal parts based on detailed digital designs. CNC machining offers a high degree of accuracy, efficiency, and flexibility, making it one of the most widely used methods in Industries such as automotive, aerospace, electronics, and medical devices.
Machines Used in CNC Machining
CNC machining requires various machine tools, each designed for specific tasks:
CNC Milling Machines: These machines use rotating cutting tools to remove Material from a workpiece. They are ideal for creating complex shapes, slots, and holes in metal parts.
CNC Lathes: CNC lathes are used for turning metal parts, typically for cylindrical or rotationally symmetric parts like shafts or bushings.
CNC Swiss Machines: These are high-precision machines that can perform turning, milling, and drilling tasks on small metal parts, often used in the medical and aerospace industries.
CNC Grinding Machines: Used for finishing metal parts to achieve precise surface finishes, CNC grinders ensure tight tolerances and smooth finishes.
CNC Machining Process
Design: The process starts with a detailed 3D design or blueprint created using CAD (Computer-Aided Design) software.
Programming: Using CAM (Computer-Aided Manufacturing) software, the 3D design is converted into machine-readable code (G-code).
Machining: The CNC machine follows the G-code instructions to precisely cut, drill, mill, or turn the metal part, using specific tools to shape the material into the desired component.
Materials Used in CNC Machining
CNC machining supports a wide variety of metal materials, each chosen based on the part’s functional requirements:
Aluminum: Lightweight, corrosion-resistant, and easy to machine, aluminum is used in automotive, aerospace, and consumer electronics parts. Common grades include 6061 and 7075.
Density: 2.7 g/cm³
Tensile Strength: 310–580 MPa
Stainless Steel: Known for its strength, durability, and corrosion resistance, stainless steel is widely used in medical devices, automotive parts, and industrial applications. Common grades include 304 and 316.
Density: 7.9 g/cm³
Tensile Strength: 520–1,000 MPa
Titanium: Titanium is extremely strong yet lightweight and is often used in aerospace and medical applications.
Density: 4.5 g/cm³
Tensile Strength: 900–1,200 MPa
Brass: Brass is an alloy of copper and zinc, known for its excellent machinability, corrosion resistance, and aesthetic appeal. It is commonly used for parts in plumbing, electrical components, and decorative applications.
Density: 8.5–8.7 g/cm³
Tensile Strength: 250–500 MPa
Copper: Known for its excellent conductivity, copper is used in electrical parts, connectors, and heat exchangers.
Density: 8.96 g/cm³
Tensile Strength: 210–250 MPa
Precision in CNC Machining
CNC machining is renowned for its high precision, with tolerances often achievable within ±0.001mm (1 micron), depending on the complexity of the part and the Capabilities of the machine. High-precision CNC machines can produce parts with tight tolerances, making them suitable for industries requiring exact specifications, such as aerospace, automotive, and medical device manufacturing.
Surface Treatment
CNC-machined metal parts often undergo various surface treatments to improve their appearance, durability, and resistance to corrosion. Some common surface treatments include:
Anodizing (for aluminum): This electrochemical process creates a thick oxide layer on the metal surface, increasing corrosion resistance and wear resistance.
Thickness: Typically 5–25 microns.
Electroplating: A thin layer of metal (e.g., nickel, chrome) is deposited onto the surface of the part, improving corrosion resistance and wear properties.
Powder Coating: A dry powder is applied and then baked to form a tough, uniform coating that enhances corrosion resistance and appearance.
Passivation (for stainless steel): A chemical treatment process that removes free iron from the surface and creates a passive oxide layer, improving corrosion resistance.
Key Features of Metal Parts CNC Machining
High Precision: CNC machining offers extremely tight tolerances (±0.001mm or better), ensuring that parts meet stringent industry standards.
Complex Geometries: CNC machines can produce complex shapes, curves, and detailed features that would be challenging or impossible to achieve using traditional manufacturing methods.
Consistency and Repeatability: CNC machines can consistently reproduce parts with high precision, ensuring uniformity across large production runs.
Efficiency: CNC machining is highly efficient, allowing for both high-volume production and custom, one-off parts.
Versatility: CNC machining can work with a wide range of materials, from metals to plastics, and can perform a variety of operations like turning, milling, and drilling.
Applications of Metal Parts CNC Machining
Metal parts CNC machining is used in a wide variety of industries, including:
Automotive: CNC machining is widely used for producing engine components (e.g., cylinder heads, crankshafts), transmission parts, and structural components for cars and trucks.
Aerospace: CNC-machined metal parts are used for creating high-precision components like turbine blades, landing gear, and fuselage parts.
Medical Devices: CNC machining is used to produce high-precision parts for medical instruments, implants, and surgical tools.
Electronics: CNC machining is essential for creating parts in smartphones, computers, and other electronic devices that require high precision and durability.
Industrial Machinery: CNC machining is used for creating components like gears, shafts, and housings that are integral to machinery performance.
Metal parts CNC machining is a powerful manufacturing process that delivers high precision, versatility, and efficiency. Whether for aerospace, automotive, medical, or industrial applications, CNC machining ensures that metal parts meet the highest standards of quality and performance. With a wide range of materials, machining techniques, and surface treatments available, CNC machining provides an ideal solution for producing complex and critical parts in various industries.
